In Brookton’s dry landscape, where the sun is abundant, but water is scarce, one local farm faced a challenge that many in WA’s agricultural regions know all too well: an insufficient water supply.
This wasn’t just a case of needing “more water.” The issue was deeper: a low-producing site, unpredictable bore yields, and a farm that needed water not just now but reliably and efficiently for years to come.
BD Water was called in to design, manage, and deliver a holistic water system that tackled the bore yield issue and future-proofed the operation using solar technology. When water is precious, every drop matters.
The Challenge in Brookton
A common but complex problem in Australia is that there simply isn’t enough water to keep up with the property’s demands. They have land to work, stock to water, and a need for reliability, but with no reticulated supply and unpredictable rainfall, groundwater is the only option.
The site itself was low-yielding, typical of the Brookton region. It’s the kind of project where cookie-cutter solutions won’t cut it. Success required a tailored approach backed by deep local knowledge, technical precision, and the ability to integrate multiple moving parts into one seamless system.
That’s exactly what BD Water does best.
Our Holistic Solution: Integrated Water Management in Action
Step 1: Drilling with Precision
We kicked off with a thorough site assessment and geological review. Based on data from nearby bores and our experience in the area, we identified the optimal drilling location and target depth.
The bore was drilled to 80 metres through hard granite – no easy feat – but with our custom-designed rigs and experienced crew, the job was completed efficiently and safely. Dual screens were installed at the best-yielding depths, allowing us to optimise the flow from this low-producing aquifer.
What did we find? Approximately 10 to 15 litres per minute, with a salinity of 800ppm – a strong result for the region and well within the usable range for agricultural purposes.
Step 2: Powering the System with Sunshine
Now that we had water, the next challenge was drawing it efficiently without running up electricity costs or even needing power on site.
The solution? A fully solar-powered pumping system designed to deliver a consistent, steady flow throughout daylight hours.
We installed:

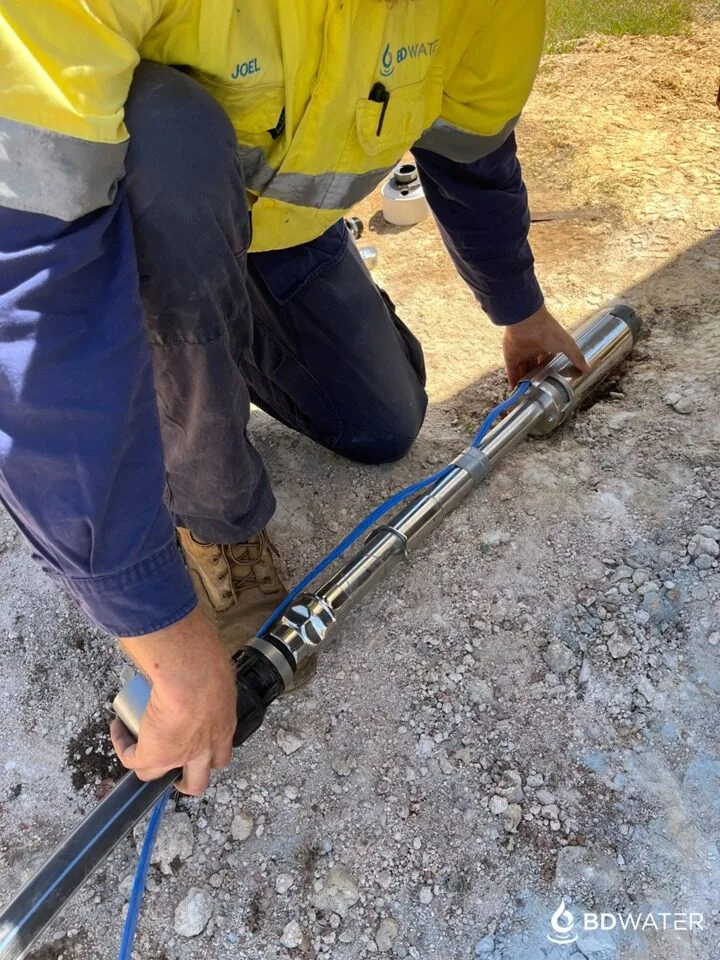

- A 0.8 kW Nastec NERA 01/02H solar pump, set at 73 metres
- Two 415W Trina solar panels for optimal energy generation
- Smart automated controls with a pressure-based start/stop system
This system pumps water gradually into an existing 20,000L tank, making the most of every minute of sunlight. It’s simple, sustainable, and built to last.
Step 3: Seamless Integration and Headworks
To bring everything together, we delivered full system integration:
- Connection from the new bore to the tank

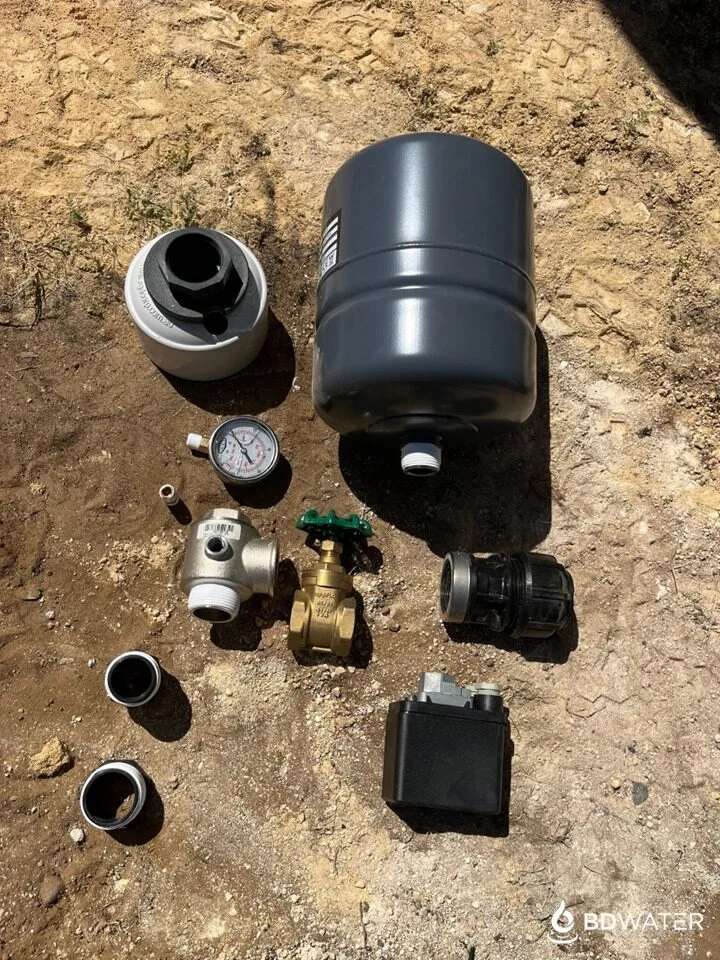

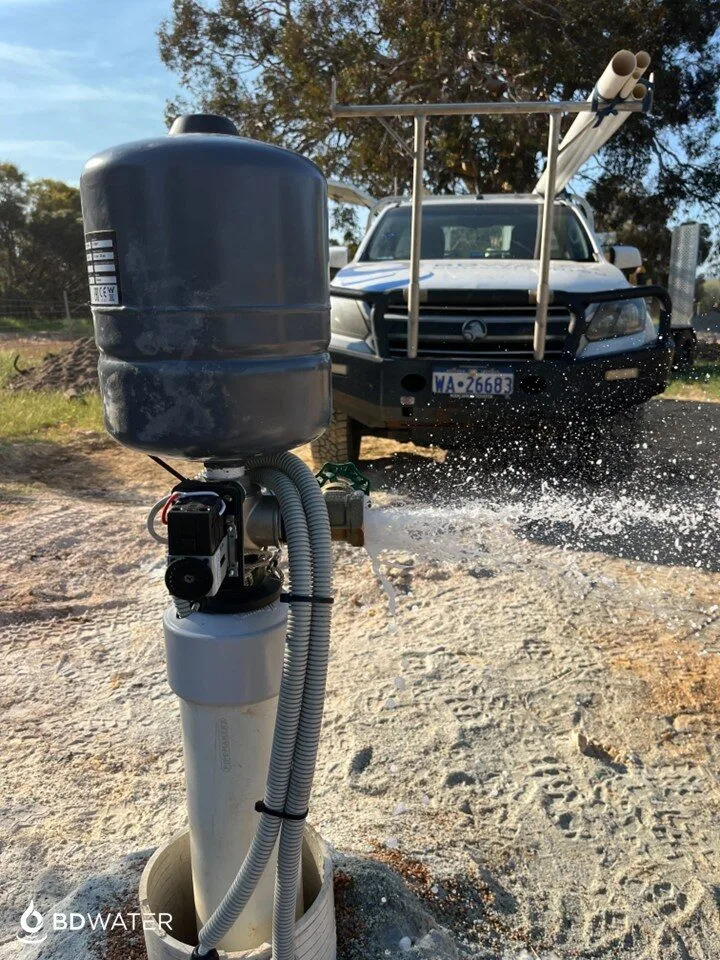

- Installation of new headworks
- Rising main and control valves
- Cabling, pump protection, and custom configuration for automation
In short, we built a complete, turn-key water system that operates hands-free and is perfectly suited to the conditions of a low-flow bore.
Delivering Solid, Reliable Results
The client is getting a consistent 10 LPM with smooth performance with the system now live. It’s not a high-yield bore, but thanks to our integrated approach, the water is captured steadily throughout the day and stored efficiently for on-demand use.
There is no need to worry about power outages, costly diesel pumps, or constant system monitoring. It’s the kind of quiet, reliable solution that just works – day in and day out.
And for regional farms like Brookton, that peace of mind is worth its weight in gold.
Why BD Water Was the Right Choice
So, what makes BD Water different? For starters, we don’t just drill, install pumps, or do licensing. We do it all – and we do it well.
Integrated Services That Work Together
From pre-drilling assessments to solar pump installation, from compliance to commissioning, we deliver a cohesive, one-stop-shop experience.
Smart Technology Meets Smart Thinking
Our use of solar wasn’t just about sustainability (though that’s a big win, too). It was about fitting the solution to the challenge – adapting to a low-yielding bore with a system that pumps gradually but consistently. That’s the BD Water difference.
People-First Approach
We’re a bit quirky and a bit cheeky, but always professional. We love collaborating directly with clients, making the process simple, transparent, and enjoyable. We’re not here to just install equipment but to solve water problems.
Designed for Sustainability and the Long Haul
This Brookton project is a prime example of how BD Water approaches every job with a long-term lens and focuses on value. The system is designed to be:
- Energy efficient – powered entirely by solar
- Low maintenance – with automation that reduces manual checks
- Environmentally sound – drawing sustainably from a low-yield source
That’s not just good for the planet – it’s good business for the client, too.
The BD Water Difference in Every Drop
BD Water brings together water drilling, irrigation, licensing, and compliance under one roof. We don’t just provide services, we deliver outcomes. Whether it’s a tricky site in Brookton or a large-scale agricultural upgrade, we make water management simple, sustainable, and stress-free.
Our team takes the time to understand your needs, assess your land, and develop a solution that works technically, financially, and operationally.
Because when it comes to water, there’s no room for shortcuts. And with BD Water, you don’t need to worry about the details. We’ve got it covered.
